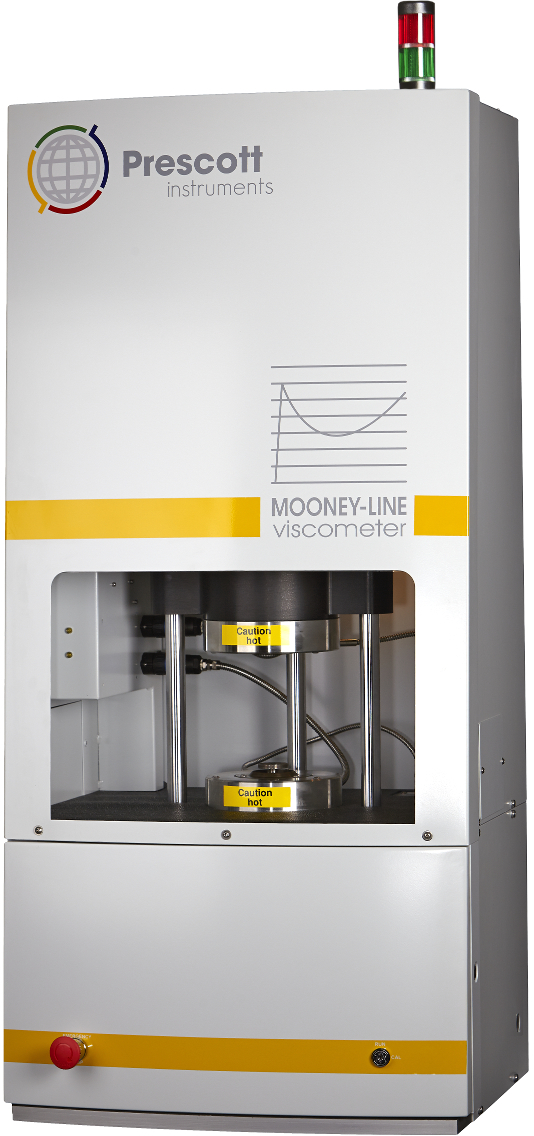

MOONEYLINE VISCOMETER Get a Quote

The Mooneyline Viscometer (MV) is the perfect choice for all professionals, suited for modern laboratories at all stages of the rubber production process, efficiently producing accurate data on a variety of elastomeric compounds.

Fundamental to all Mooneyline Viscometers is the rotor and die assembly. A sample of test material is placed above and below the rotor and the platens then close under pressure. By the means of microprocessor based PID control system, the temperature of the dies and the sample contained within are accurately maintained throughout the test.

The rotor rotates at a constant speed to two revolutions per minute and by means of a precise transducer system located below the die assembly, and the torque exerted on the rotor head is measured and recorded within the system data files.

An important feature of the Mooneyline Viscometer is its ability to be programmed for measuring the Stress Relaxation index of material samples. This feature enables the user to measure the decay of viscosity by firmly locking the Rotor aft er the programmed test time has elapsed.

In addition to this, the equipment meets the requirements of ASTM D1646 and can perform industry standard tests.

Product's Images
